• Product Description
    Company Info.
    <
    >
    <
    >
    Basic Info.
    Types:
    Upper roll plate winder
    Model:
    HF-400-JB
    Inventory or not:
    Yes
    Main motor power:
    4.2 kw
    Overall dimension:
    1300X1300X1850 mm
    Maximum thickness of coiled plate:
    3 mm
    Maximum width of coiled plate:
    400 mm
    Coil speed:
    5 m/min
    Lower roll diameter:
    320 mm
    Minimum diameter of full load rolling:
    30 mm
    Power type:
    Hydraulic pressure
    Control form:
    Artificial
    Layout form:
    Horizontal type
    Action object material:
    Metal
    Product Description



    I. Overview of equipment

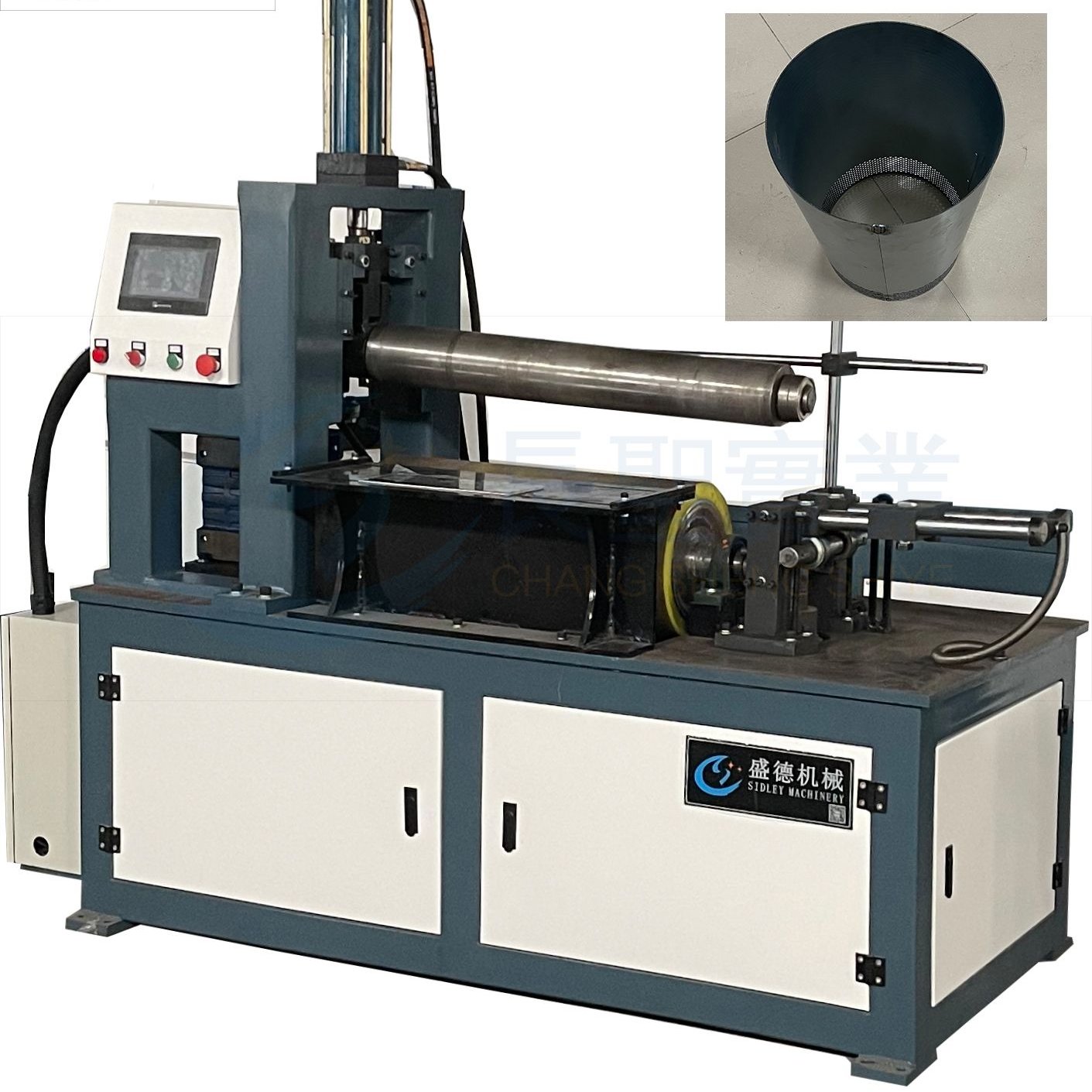

        Two-roller plate bending machine is a new type of plate bending machine. The upper roller is a steel roller, the lower roller is a steel roller core wrapped with an elastic layer, the plate is placed between the two rollers, the distance between the two rollers is adjusted, the plate rises, the plate deforms locally, and the two rollers are driven to rotate, so that the plate is continuously bent and formed. The machine can be formed in one time, with high production efficiency, high geometric precision, good surface quality, simple structure, minimum number of rollers, simple operation and convenient to realize programmed numerical control of production process.



    Widely used, fast batch manufacturing thin-walled pipes, ventilation pipes, chimneys, filters, solar water heaters, automobile exhaust pipes, liquid (gas) tanks and so on.



    II. Main characteristics of equipment



    1. The machine adopts manual auxiliary feeding, the gap distance at the butt joint after rolling can be adjusted by equipment, and the gap can be controlled at 5-10 mm. There is no horizontal dislocation phenomenon after the plate is rolled round.



    2, machine rolling workpiece precision roundness in the circle diameter of 5 range.



    3, fast rolling, very small amount of straight edge, thin plate without straight edge.



    4, workpiece winding time about 18 seconds/piece



    5, the lower shaft should be guaranteed to be free of oil, no cracks after the plate is rolled round, wrong mouth and other defects.



    6, automatic return device.



    7, movable, independent electrical control console
